Model Number: 0G10539-1
G-SPEED Shuttle XL with Thunderbolt 2 - 80TB

A transportable, hardware RAID, 8-Bay Thunderbolt™2 solution offering content creators colossal capacity and high definition performance. Designed to ... See more

Capacity

Buy Direct from Western Digital
Free standard shipping on eligible orders of 600kr. Details
Members get free shipping on all eligible orders. Details
Free 30-Day Returns Learn More
Guaranteed Authentic Products
Thunderbolt 2,Interface
Thunderbolt 2
Interface
up to 1350MB/s,Transfer Rate
up to 1350MB/s
Transfer Rate
3-Year Limited Warranty,Warranty
3-Year Limited Warranty
Warranty
Thunderbolt 2,Interface
Thunderbolt 2
Interface
up to 1350MB/s,Transfer Rate
up to 1350MB/s
Transfer Rate
3-Year Limited Warranty,Warranty
3-Year Limited Warranty
Warranty

Hardware RAID 8-Bay Thunderbolt™2 Storage Solution

A transportable, hardware RAID, 8-Bay Thunderbolt™2 solution offering content creators colossal capacity and high definition performance. Designed to support multi-stream 4K workflows and beyond, the G-SPEED Shuttle XL can be configured in RAID 0, 1, 5, 6, 10 & 50, features transfer rates up to 1350 MB/s2, Enterprise-class hard drives and the trusted G-Technology 3-Year warranty.

  • Up to 112TB1 of storage
  • Transportable design
  • Supports HD, 2K and compressed 4K and 6K workflows
  • Hardware RAID
  • Up to 1350MB/s sustained transfer rates
  • Dual Thunderbolt™2 ports
  • Enterprise-class hard drives
  • Removable 7200 RPM Drives
  • 3-Year Limited Warranty

Specifications

Capacity
80TB
Connector
  • Thunderbolt 2
  • Power Supply
Interface
Thunderbolt 2
Transfer Rate
up to 1350MB/s
Disk Speed (RPM)
7200 RPM
Warranty
3-Year Limited Warranty
Dimensions (L x W x H)
245.11mm x 175.01mm x 385.06mm
Weight
11.91kgs
Model Number
0G10539-1
Certifications
FCC-ICES, CE, RCM, BIS, EAC, KC, VCCI, UKCA
Product Features
  • Supports HD, 2K, and compressed 4K and 6K workflows
  • Hardware RAID
    • >
  • Dual Thunderbolt 2 ports
Compatibility
  • macOS 10.9 +
  • Windows 10, 8.1, 7 (via reformat)
In The Box

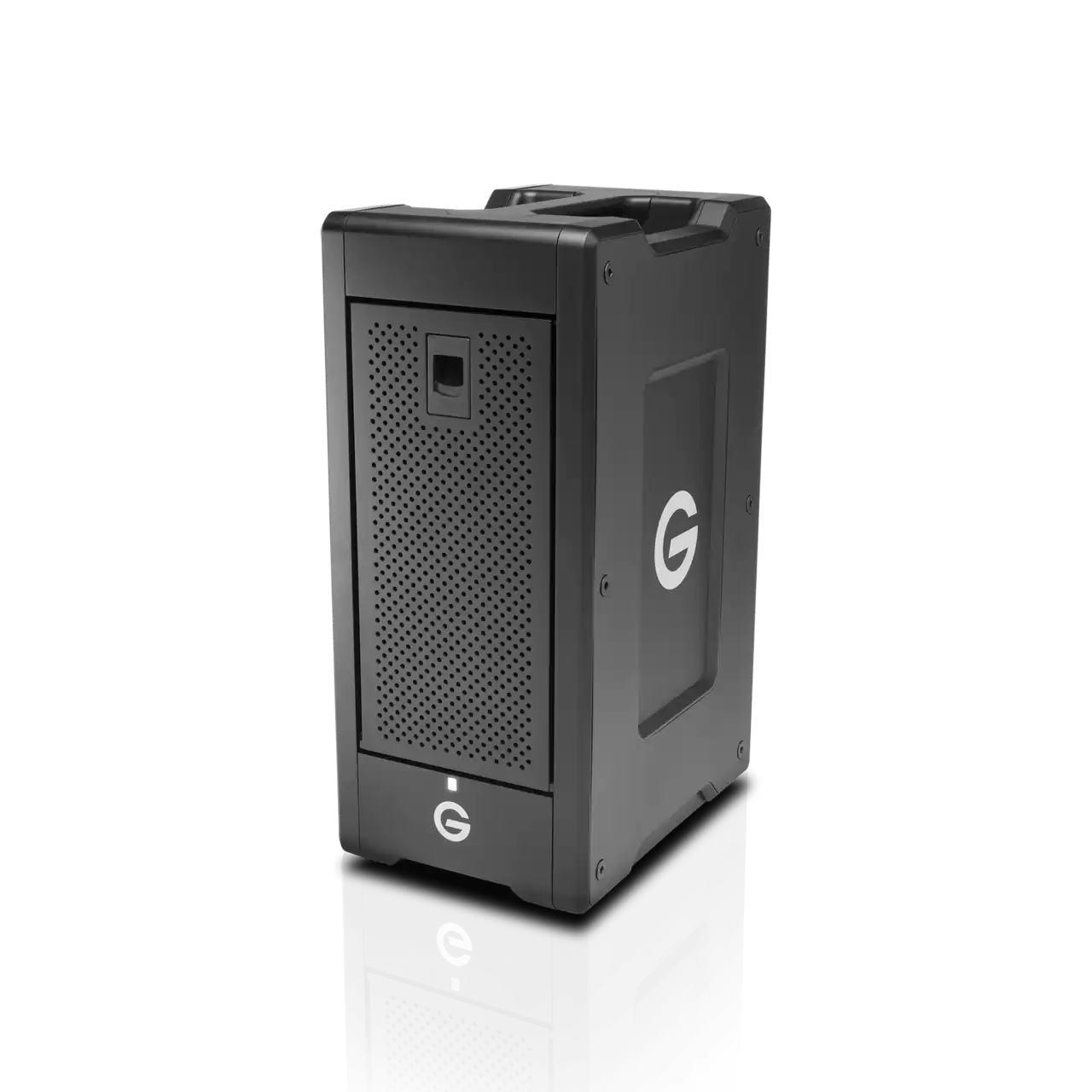

G Speed Shuttle XL Hero Drive Module Out HR.png
  • G-SPEED Shuttle XL 8-Bay Storage System
  • (8) Removable disk modules
  • (1) Thunderbolt™2 cable
  • Power cord
  • Quick Start Guide
  • 3-Year limited warranty
Model Numbers
80TB: 0G10539-1
Model Numbers
80TB: 0G10539-1

Support & Resources

Disclosures

  1. As used for storage capacity, 1GB = 1 billion bytes and 1TB = one trillion bytes. Actual user capacity may be less, depending on operating environment. For RAID products, storage capacity is based on RAID 0 mode.
  2. Based on read speed, unless otherwise specified. As used for transfer rate, megabyte per second (MB/s) = one million bytes per second. Performance will vary depending on your hardware and software components and configurations.
